手動漿料閘閥: |
手動漿料閘閥主要性能規范
Chief Proprty And Specifieation
| 公稱壓力PN(MPa) Normal Pressure |
0.6 | 1.0 |
| 適用介質 Suitable Medium |
紙漿料 | 糖漿、泥漿、紙漿、污水 Pulp、Studge、Dross |
| 閥體材料 Material Of Body |
鑄鋼、鑄鐵、不銹鋼 Cast-iron、Stainless Steel |
鑄鋼、鑄鐵、不銹鋼 Cast-iron |
| 適用溫度 Applicable Temperature |
X＜80 | |

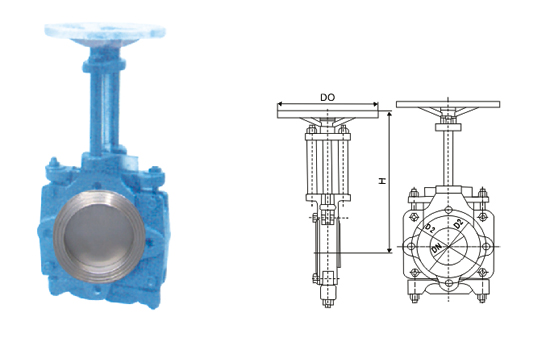

手動漿料閘閥主要外形及連接尺寸
Main External And Connecting Dimensions(mm)
| 公稱壓力 PN(MPa) Normal Pressure |
公稱通徑 DN(mm) Noninal Diameter |
主要結構尺寸（mm） | 公稱通徑 DN(mm) |
主要結構尺寸（mm） | ||||||||||
| L | H | H1 | D1 | D2 | Z-Φd | L | H | H1 | D1 | D2 | Z-Φd | |||
| 1.0 | 50 | 48 | 306 | 356 | 125 | 100 | 4-20 | 250 | 70 | 724 | 974 | 350 | 324 | 12-24 |
| 65 | 48 | 320 | 365 | 145 | 145 | 4-20 | 300 | 76 | 820 | 1120 | 400 | 400 | 12-24 | |
| 80 | 50 | 336 | 416 | 160 | 160 | 4-20 | 350 | 76 | 921 | 1271 | 460 | 460 | 16-24 | |
| 100 | 50 | 374 | 180 | 180 | 180 | 8-20 | 400 | 89 | 1026 | 1426 | 515 | 515 | 16-28 | |
| 125 | 57 | 446 | 210 | 210 | 210 | 8-20 | 450 | 89 | 1128 | 1578 | 656 | 565 | 20-28 | |
| 150 | 57 | 543 | 240 | 240 | 240 | 8-20 | 500 | 114 | 1225 | 1725 | 620 | 620 | 20-28 | |
| 200 | 70 | 610 | 295 | 295 | 295 | 8-24 | 600 | 114 | 1466 | 2066 | 725 | 685 | 20-30 | |
