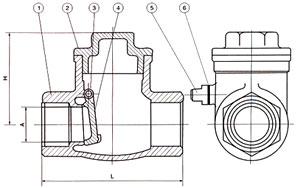

序號 |
零件名稱 |
材質 |
|
1 |
閥體 |
不銹鋼CF8M/CF8 |
|
2 |
閥蓋 |
不銹鋼CF8M/CF8 |
|
3 |
搖桿插銷 |
不銹鋼316/304 |
|
4 |
閥瓣 |
不銹鋼CF8M/CF8 |
|
5 |
螺塞 |
不銹鋼316/304 |
|
6 |
螺塞墊片 |
聚四氟乙烯PTFE |
|
SIZE |
1/2″ |
3/4″ |
1″ |
11/4″ |
11/2″ |
2″ |
|
|
|
|
A |
15 |
20 |
25 |
32 |
40 |
50 |
|
||
|
H |
42 |
51 |
60 |
67 |
75 |
81 |
|
|
|
|
L |
65 |
80 |
90 |
105 |
120 |
140 |
